Clock cycle time or clock period: the time interval between two consecutive rising or falling edges of the clock. They are stable and their timing can easily be broken down into independent discrete steps, each of which is considered separately.Ī clock signal is a periodic square wave that indefinitely switches from 0 to 1 and from 1 to 0 at fixed intervals.
Synchronous sequential circuits that use clock pulses in the inputs are called clocked-sequential circuits. Clock pulses are distributed throughout the system in such a way that the flip-flops are affected only with the arrival of the synchronization pulse. Synchronization is achieved by a timing device called a clock pulse generator. Combinational circuits (Section 7.1) are instantaneous (except for the time required for the electronics to settle). All state transitions in such circuits occur only when the clock value is either 0 or 1 or happen at the rising or falling edges of the clock depending on the type of memory elements used in the circuit. Sequential circuits have a clock signal as one of their inputs. Synchronous sequential circuits use logic gates and flip-flop storage devices. This type of system uses storage elements called flip-flops that are employed to change their binary value only at discrete instants of time. Because of the feedback among logic gates, the system may, at times, become unstable. Gate-type asynchronous systems are basically combinational circuits with feedback paths. This is a system whose outputs depend upon the order in which its input variables change and can be affected at any instant of time. Definition: A sequential logic circuit is one whose outputs depend not only on its current inputs, but also on the past sequence of. Their classification depends on the timing of their signals: There are two types of sequential circuits. A sequential circuit is specified by a time sequence of inputs, outputs, and internal states. A sequential circuit is generally a combinational circuit with memory. Memory elements next state is also a function of external inputs and present state. So generally this is a logic circuit that has different logic gates integrated into its circuit. The input and the present state of the memory element determines the output. The binary info stored in the memory elements at any given time defines the state of the sequential circuit. The memory elements are devices capable of storing binary info.

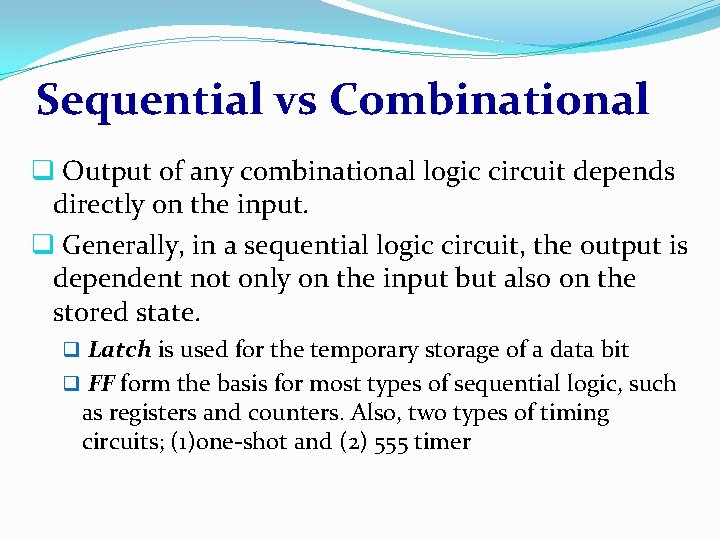

Combinational logic output depends on the inputs levels, whereas sequential logic output depends on stored levels and also the input levels. Also known as 'combinatorial logic,' it refers to a digital logic function made of primitive logic gates (AND, OR, NOT, etc.) in which all outputs of the function are directly related to the. Digital electronics is classified into combinational logic and sequential logic.
